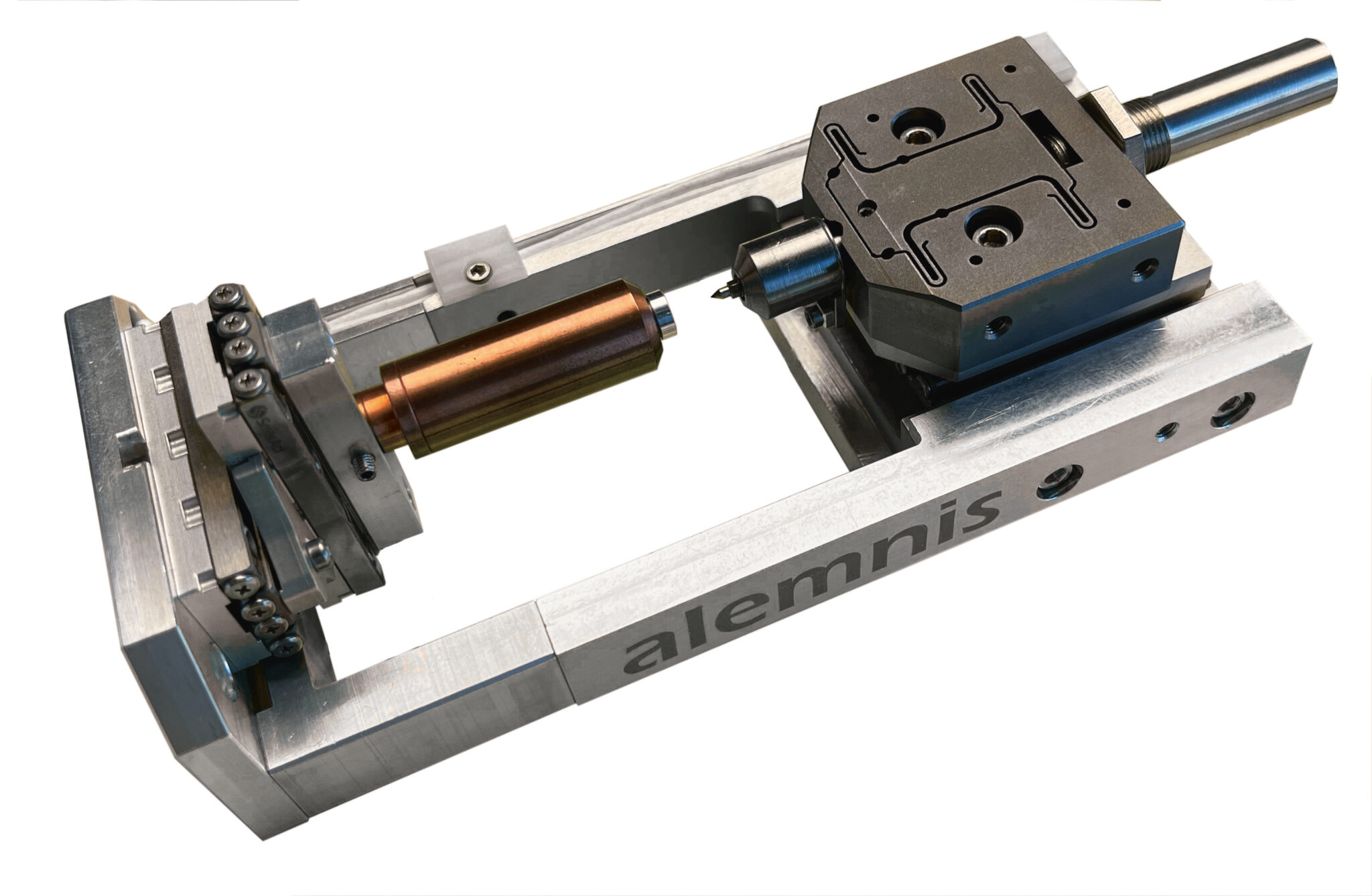

    Nanoindenter Alemnis UHS(Ultra High Strain)
  • 1) 보다 높은 수준의 Indentation, Tensile 및 Compression 실험에 적합
  • 2) 0.0001 에서 10,000/s 수준의 변형률로 마이크로 수준의 기계적 테스트 중 가장 빠름
  • 3) Standard method보다 백만배 빠른 Nano Indentation
  • 4) 실제 변위 제어를 통한 일정한 변형률 제공
  • Nanoindenter
    Alemnis UHS(Ultra High Strain)
  • 1) 보다 높은 수준의 Indentation, Tensile 및 Compression 실험에 적합
  • 2) 0.0001 에서 10,000/s 수준의 변형률로 마이크로 수준의 기계적 테스트 중 가장 빠름
  • 3) Standard method보다 백만배 빠른 Nano Indentation
  • 4) 실제 변위 제어를 통한 일정한 변형률 제공
  • Product Features 제품특징

    Alemnis UHS(Ultra High Strain)

    Alemnis는 다양한 테스트 환경에 적용할 수 있는 마이크로, 나노 수준의 최첨단 기계적 특성 분석 장치를 제공하여 재료과학 분야에서 획기적인 연구를 가능하게 합니다.
    Alemnis 나노인덴터 제품은 EPFL(Swiss Federal Institute of Technology)과 EMPA(Swiss Federal Laboratories of Materials Science and Technology)의 공동 프로젝트에서 수행된 다년간의 과학 분석 장비 및 피에조 변환 장치 설계 경험을 바탕으로 합니다. 이 발명자들의 논문은 과학계에서 매우 인정받는 미국 진공 학회의 Bunshah Award 2004를 수상했습니다.

    기본 모델-ASA(Alemnis Standard Assembly) 대비 보다 정밀한 분석을 가능케 하는 장비로 현재 존재하는 Nanoindenter 장비 중 가장 빠른 변형률을 가지고 있습니다.

    • • Pioneering High Strain Rate Testing – 10년 이상의 전문성을 갖춘 마이크로 수준 테스트
    • • Exceptional Performance – 최대 변형률 및 정밀한 제어 가능
    • • Versatile Testing Applications – 높은 수준의 Indentation, Tensile, 및 Compression 테스트에 알맞은 장치
    • • Unmatched Strain Rate Range - 0.0001에서 10,000 /s수준의 변형률로, 마이크로 수준의 기계적 테스트 중 가장 빠른 속도
    • • Advanced Testing Features – 복잡한 설계 없이 제어 가능한 변형률 및 실시간 데이터 분석
    • • High Strain Rate Nanoindentation – 표준 방법보다 백만배 빠른 Nano Indentation
    • • High Strain Rates Micro Compression – 진정한 변위 제어를 통한 일정한 변형률 제공
    Specifications 제품사양
    SpecificationAlemnis UHS(Ultra High Strain)
    General Specifications
    Testing environmentin-situ and ex-situ
    Common in-situ techniquesSEM, EBSD, Raman, Synchrotron XRD, Tomography, Optical, AFM
    Common mechanical testNanoindentation, compression/tension, scratch, fatigue, creep, etc.
    Control modeTrue displacement control, load control, or mixed mode
    Indenter typesBerkovich, cube-corner, spherical, wedge, flat punch, custom
    Indenter exchangeSafe and easy in 30 seconds
    Load directionsCompression, tension, and lateral
    Weight500g
    Additional modules
    Temperature control-150℃ up to 1000℃
    Environmental controlRelative humidity (5-90% RH at 25-70℃), liquid, gas, vacuum
    High Strain rateControlled strain rate up to 10,000/s, 10kHz cycling frequency
    Load & Displacement
    XYZ position rage26mm
    XYZ positioning resolution1nm
    Load rangeTypical: 1.5N, Optional: Max. 4N
    Load RMS noiseTypical: 8uN, Optional: Min. 1uN
    Piezo actuation rangeTypical: 40um, Optional: Max. 100um
    Displacement noise RMSTypical: 1nm, Optional: Min, 150pm
    Displacement incrementTypical: 1.2nm, Optional: Min. 40pm
    Control loop frequencyTypical: 5kHz, Optional: Max. 500kHz
    Sampling frequencyTypical: 50kHz, Optional: Max. 1MHz
    Number of indents per secondTypical: 1, Optional: Max. 5
