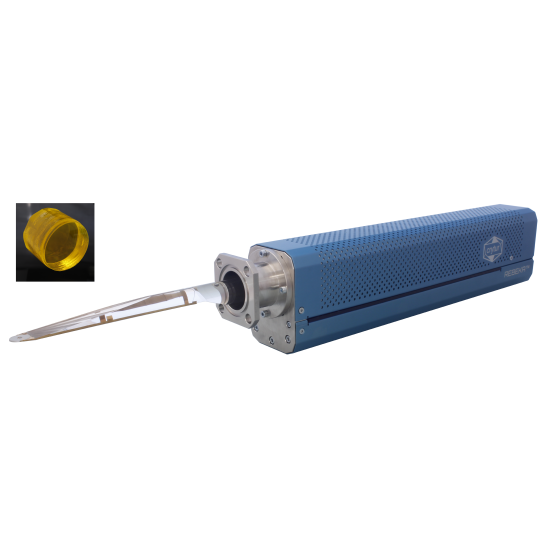

    Crytur BSE Detector
  • BSE detector Upgrade, SDD replacement
  • Single crystal YAG : Ce sensor(sensor 교체 필요 없음)
  • 최고의 image quality를 구현하는 Scintillator/PMT
  • High Speed : 20nm/pixel (TV rate speed)
  • High Sensitivity : 0.5keV 이하의 가속전압 차이 구분
  • 최상의 S/N ratio
  • High Vacuum + Low Vacuum + ESEM operation
  • Materials Z contrast 분석
  • *YAG crystal 별도 구매 가능
  • Crytur
    BSE Detector
  • BSE detector Upgrade, SDD replacement
  • Single crystal YAG : Ce sensor(sensor 교체 필요 없음)
  • 최고의 image quality를 구현하는 Scintillator/PMT
  • High Speed : 20nm/pixel (TV rate speed)
  • High Sensitivity : 0.5keV 이하의 가속전압 차이 구분
  • 최상의 S/N ratio
  • High Vacuum + Low Vacuum + ESEM operation
  • Materials Z contrast 분석
  • *YAG crystal 별도 구매 가능
  • Product Features 제품특징

    BSE Detector

    BSE detector Upgrade, SDD replacement
    Single crystal YAG : Ce sensor(sensor 교체 필요 없음)
    최고의 image quality를 구현하는 Scintillator/PMT
    High Speed : 20nm/pixel (TV rate speed)
    High Sensitivity : 0.5keV 이하의 가속전압 차이 구분
    최상의 S/N ratio
    High Vacuum + Low Vacuum + ESEM operation
    Materials Z contrast 분석
    - PRECISE MECHANICS -
    Motorized retraction mechanism
    Bellows-sealed high vacuum system
    Retraction 150 mm
    Compact design
    Precise alignment
    Customized connection to SEM

    Specifications 제품사양
    Specifications
    Sensor UnitYAG:Ce scintillator with 75ns decay time and 30photons/keV
    Outer diameter 15mm
    Hole diameter 1.2/2/4//6mm
    Sensor thickness 4mm
    CRYTUR low-energy coatingTM sensitive down to 0.5keV
    Mechanical Unit145mm retraction path
    +/- 2mm adjustment
    0.01mm repeatibility
    Bellows vacuum sealing
    Electronics Control Unit50MHz bandwidth – 20ns/pxl
    +/-1V (max+/-5V) video signal output
    Remote SW control or Manual operation
