    투과법을 이용한 실시간 형광 X-선 분석장치 NEX-XT
  • Compact design with no routine maintenance
  • Up to 1480 psig and 200℃
  • User adjustable data update frequency
  • Reduced standards requirements
  • No sample condition or recovery system
  • No radioisotopes

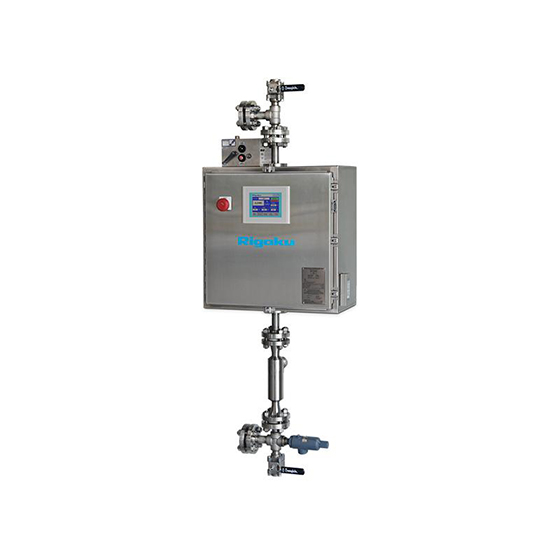

  • 투과법을 이용한 실시간 형광 X-선 분석장치
    NEX-XT
  • Compact design with no routine maintenance
  • Up to 1480 psig and 200℃
  • User adjustable data update frequency
  • Reduced standards requirements
  • No sample condition or recovery system
  • No radioisotopes
  • Product Features 제품특징

    NEX-XT

    Rigaku's NEX XT is the next generation process gauge for high-level total sulfur measurement (0.02% to 6% S) of crude, bunker fuel, fuel oils, and other highly viscous hydrocarbons, including residuums.

    Specifications 제품사양
    Specifications
    Sulfur range0.02 ~ 6%
    Process conditions - Stream pressures to 100bar(1480psig)
    - Stream temperatures to 200℃
    - Flow rates up to 200l/m
    Communications - Sulfur results : 4-20mA output
    - Density results : 4-20mA output
    - General warning : dry contact
    - General alarm : dry contact
    - PROFINET or MODBUS 485
    Required inputs - 4~20mA raw density
    - Precision of +/- 0.0001 or better
    Optional inputs - 4~20mA process temperature
    - For density corrected to 15℃/59℉
    - 4~20mA water concentration
    - If water correction is desired
    - 4~20mA flow
    - For loss of flow warning
    - 4~20mA remote calibration selection
    Air supply - Purge
    - 4.1 ~ 8.3 bar (60-120 psig) air pressure
    - 115 ~ 225 l/m (4~8 scfm) rapid exchange
    - Leakage compensation (application specific)
    - Optional vortex cooler
    - 710 ~ 990 l/m (25~35 scfm) dry oil free air
    - 6.9 ~ 8.3 bar (100~120 psig) air pressure
    Process connection - Two 1 inch 600 #ANSI flanges
